Servers - Supermicro Embedded

SKU : 155939         Mfg. Part No. : SYS-5038MD-H8TRF

SYS-5038MD-H8TRF 3U 8-Nodes ( Xeon D-1541, 4xDR4 VLP, 2x3.5" 2xGLN ) 2x1600W

3U w/ 8-Hot-Plug-Nodes Rackmount (Specs per Node) - CSE-938BH-R1K68B Chassis - X10SDD-F Motherboard - Socket FCBGA 1667 - Intel Xeon D-1541 2.1GHz 8-Core (2.7GHz Turbo) - (1 of 1 CPU(s) Installed) - Max. 8 Blades - 0GB RAM (128GB Max) - Intel Xeon SoC SATA Controller - 2x 3.5"/ 4x 2.5"( Optioanl Kit) HDD(s) Max. - 2x Intel i350 Gigabit Ethernet LAN Ports - 2x1600W Hot-Swappable / Redundant PSU - KVM Dongle (1x VGA / 1x COM / 2x USB 2.0 Ports) - 3 Year Depot Carry-In Mfg. Warranty

Price : $12950.00* Qty.

(* - Cash Discounted Price (Reg. $13597.50))



Integrated Board Super X10SDD-F



3U with 8-Nodes Model Key Features (per node):
• Cloud Computing
• Web Cache, CDN
• Web Hosting, VM
• Social Networking


1. Single socket FCBGA 1667,Intel Xeon D-1541 2.1ghz (turbo 2.7Ghz) 8-Core, 45W, 16 Threads;
2. 2x 3.5" SATA3 by default; 2x 2.5" SATA3 HDDs w/ Optional kits
3. 4 DDR4 Slots
Up to 128GB DDR4 ECC RDIMM, or
to 64GB DDR4 ECC UDIMM;
4. 2x GbE LAN RJ45 ports via Intel i350, 1x dedicated LAN for IPMI RE45 Remote Management port
5. 1x PCI-E 3.0 x8 LP, 1x Micro-LP, 4x M.2
6. KVM Dongle Cable for : 2x USB 2.0, 1x VGA, 1x COM port
7. 4x 8cm heavy duty hot-swap fans with optimal cooling zone (per system)8. 2x 1600W Redundant power supplies Titanium Level Certified (per system)



SuperServer

SYS-5038MD-H8TRF (Black)

Motherboard
Motherboard	MBD-X10SDD-F

Processor/Cache
CPU	Intel® Xeon® processor D-1541 Socket FCBGA 1667 CPU TDP support 45W, 12MB, 8 Cores, 16 Threads, 2.1-2.7GHz

System Memory (per node)
Memory Capacity	4x 288-pin DDR4 DIMM slots Supports up to 128 GB DDR4 ECC RDIMM Supports up to 64 GB DDR4 ECC UDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes	32GB, 16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

Expansion Slots (per node)
PCI-Express	1x PCI-E 3.0 x8 Low-profile slot 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional 4x M.2 (2x PCI-E 3.0 x4 + 1x PCI-E 2.0 x4 + 1x PCI-E 2.0 x2)

Network Devices (per node)
Micro-LP NIC	Intel® i350 GbE controller Dual RJ-45 connectors Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/O Acceleration Technology (I/O AT) MicroLP Adapter Matrix (Networking options)

On-Board Devices (per node)
Chipset	System on Chip (SoC)
SATA	SATA3 (6Gbps) via SoC
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2400 BMC
Headers	1x Type A USB 3.0
Graphics	ASPEED AST2400 Graphics (BMC with Graphic controller)

Input / Output (per node)
SATA	2x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
KVM	1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)

System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3

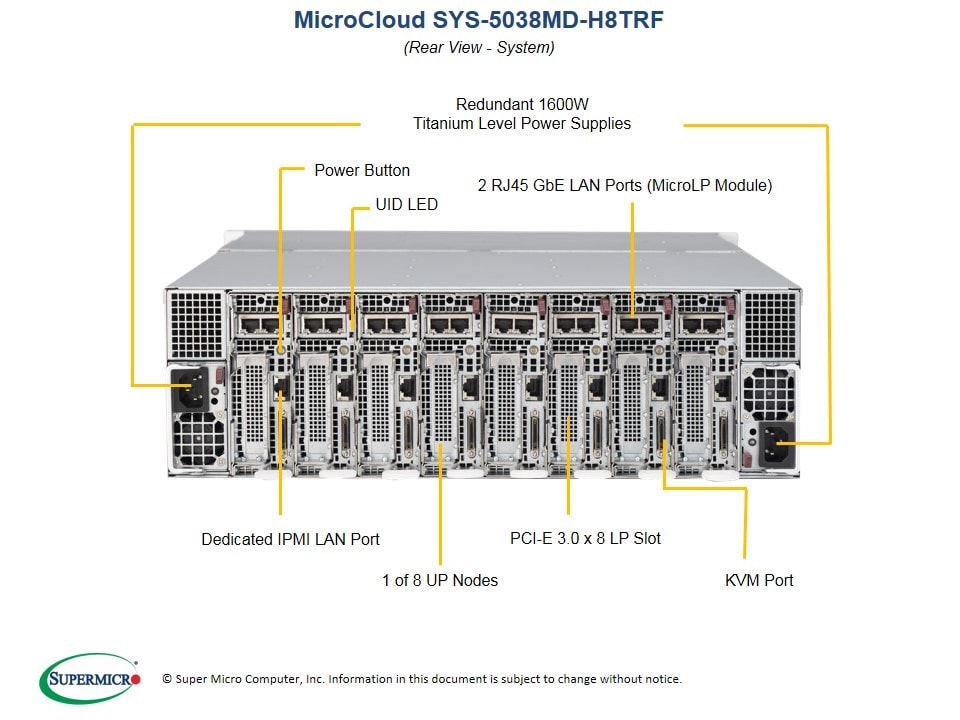

Rear Window (each node)
Switch	Power / UID

Chassis
Form Factor	3U
Model	CSE-938BH-R1K68B

Dimensions and Weight
Height	5.21" (132 mm)
Width	17.26" (438 mm)
Depth	23.2" (589 mm)
Package	11.65" (H) x 26.26" (W) x 34" (D)
Weight	Net Weight: 62.2 lbs (28.21 kg) Gross Weight: 88 lbs (39.92 kg)
Color	Black

Front Panel
Buttons	Power On/Off button
LEDs	Power LED Node status LED

Drive Bays (per node)

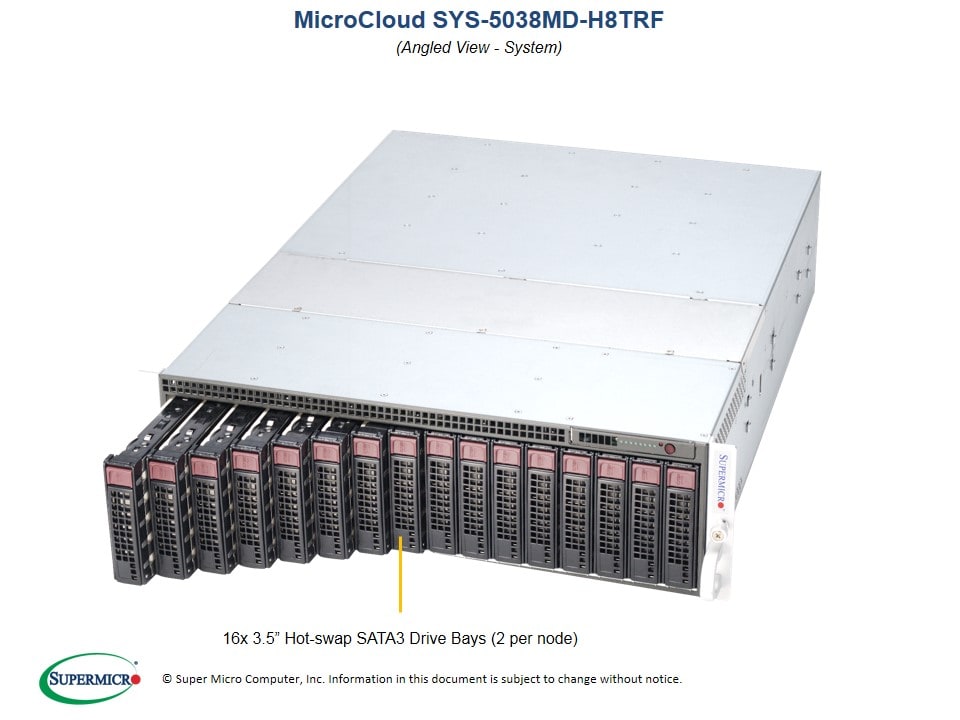

Internal	2x 3.5" Hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total Enterprise SATA HDD only recommended

System Cooling
Fans	4x 8cm Heavy duty fans with optimal cooling zone

Power Supply (76mm Width)
1600W Redundant Power Supplies with PMBus
Total Output Power	800W/1600W
Dimension (W x H x L)	76 x 40.4 x 336 mm
Input	100-140Vac / 10-7A / 50-60Hz 180-240Vac / 11-8A / 50-60Hz
+12V	Max: 66A / Min: 0A (100-127Vac) Max: 133A / Min: 0A (200-240Vac)
+5Vsb	Max: 1A / Min: 0A
Output Type	27 Pairs Gold Finger Connector
Certification	UL/cUL/CB/BSMI/CE/CCC Titanium Level [ Test Report ]

PC Health Monitoring
CPU	Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN	Cooling zone
Temperature	Monitoring for CPU and chassis environment
